Description

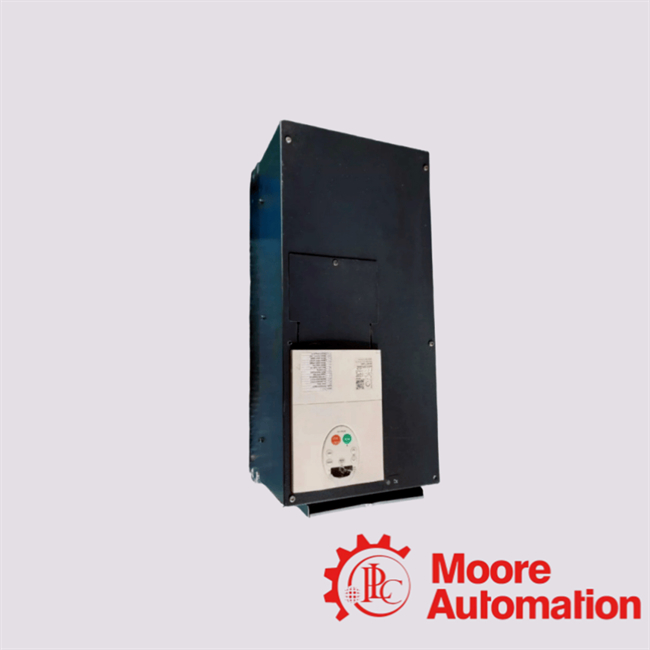

The Schneider Electric ATV212HD45N4 is a high-performance variable speed drive (VSD) from the Altivar 212 series, designed

 for controlling 3-phase asynchronous (induction) motors in HVAC and fluid management applications.

Frequently Asked Questions About ATV212HD45N4

Q1: How do I program the ATV212HD45N4 for a 4–20 mA speed reference?

A1: To configure the drive for a 4–20 mA input:

Set parameter FMOd to 1 to select the VIA input.

Adjust parameter F201 to 20 to set the minimum input to 4 mA.

Toggle the VIA dip switch (SW100) to the "I" position for current input.

Connect the 4–20 mA signal to terminals VIA (input) and CC (common).

Q2: What should I do if the drive doesn't reach full speed?

A2: Ensure the following:

Parameter TYP is set to 2 for 60 Hz operation.

Check the upper limit (UL) setting to confirm it's set to 60 Hz.

Verify that the analog input scaling (parameters F201–F204 for VIA or F210–F213 for VIB) is correctly configured.

Inspect for any current limit indications (e.g., "C" on the display), which may cause the drive to limit speed to protect against overcurrent.

Q3: Can I operate the ATV212HD45N4 without a motor connected?

A3: Yes, the drive can be configured to run without a motor. This setup is useful for testing or

commissioning purposes. Refer to the official Schneider Electric documentation for detailed instructions on configuring the drive for this operation.
